Getting Started

Installation

The PeriLab package is available through the Julia package system and can be installed as an App using the following commands:

using Pkg
Pkg.Apps.add("PeriLab")

Bundled Installation

Alternatively, you can also download the binaries for Windows or Linux directly from the release page, Julia is already included there.

Using `PeriLab`

The simplest way to run the PeriLab simulation core is to use the provided PeriLab Application and go.

PeriLab -e
PeriLab examples/DCB/DCBmodel.yaml

The output should look like this:

The main functionalities for the yaml input deck is given in

"examples/functionalities.yaml"

Using `PeriLab` with multiple processors (MPI)

In order to run PeriLab for large scale problems MPI needs to be installed:

$ julia
julia> using MPI
julia> MPI.install_mpiexecjl()

Run PeriLab with two processors:

$ mpiexecjl -n 2 julia -e 'using PeriLab' examples/DCB/DCBmodel.yaml

For post-processing of the Exodus result files ParaView is used. You can open the .e file directly. All output data can be find there. At step 0 all zero. They are filled in the first step. The number of steps are defined in the yaml.

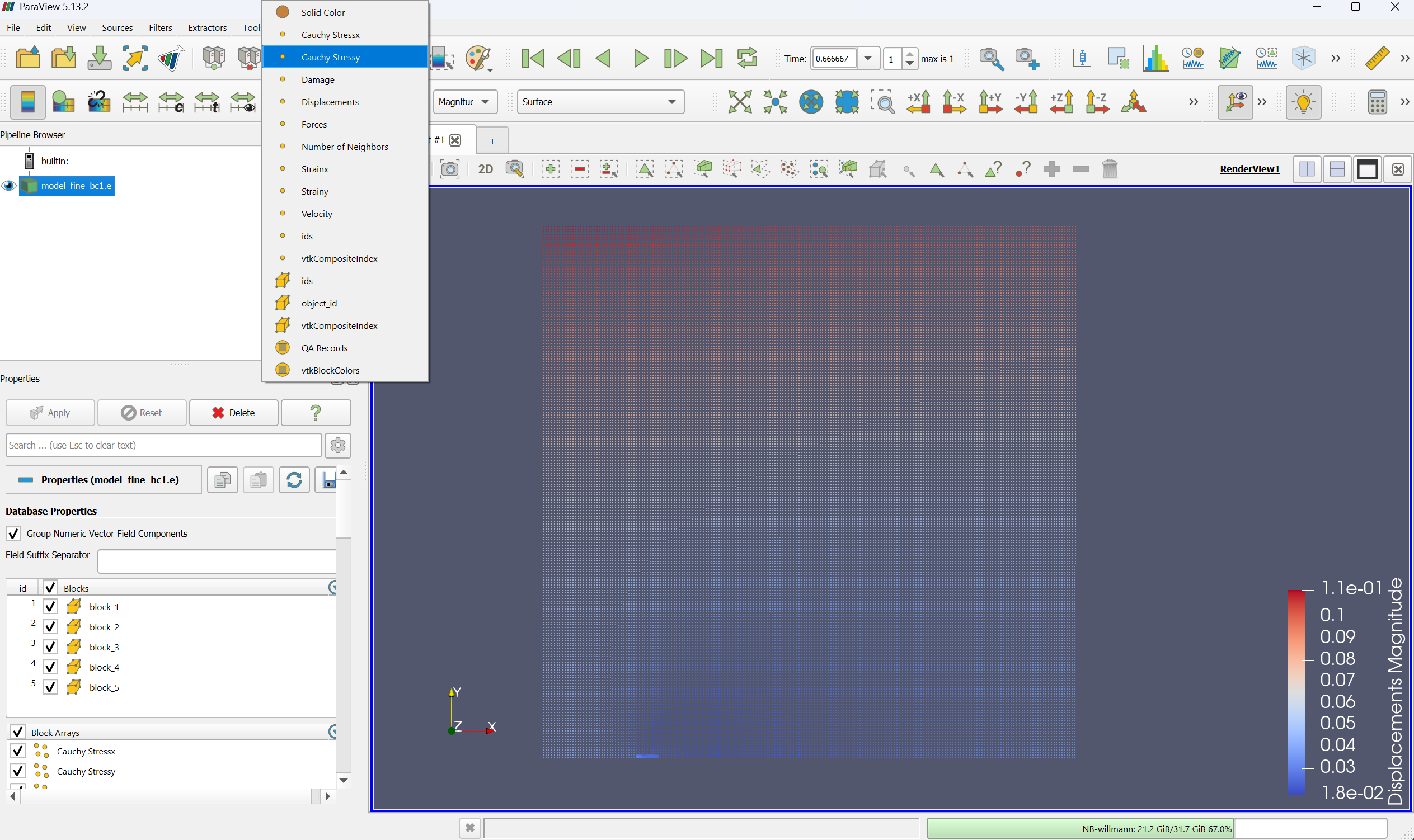

The figure shows an example of a plate and the list of possible options.

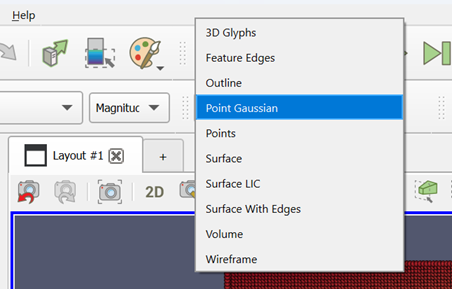

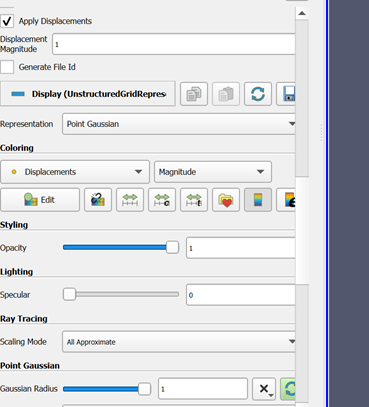

Because the points are very small, you have the option to use point gaussian as an option. The points get a volume. The standard is a sphere. The size can be scaled.

Training

The training input is given under the examples folder. The documentation and a video will follow.

Functions

PeriLab.main — Function

main()

Entry point for the PeriLab application.

This function serves as the entry point for the PeriLab application. It calls the core run function with the provided arguments.

source

PeriLab.get_examples — Function

get_examples()

Copy the examples folder to the current directory.

source
