Seminar 5: From bond-based to state-based II (Application)

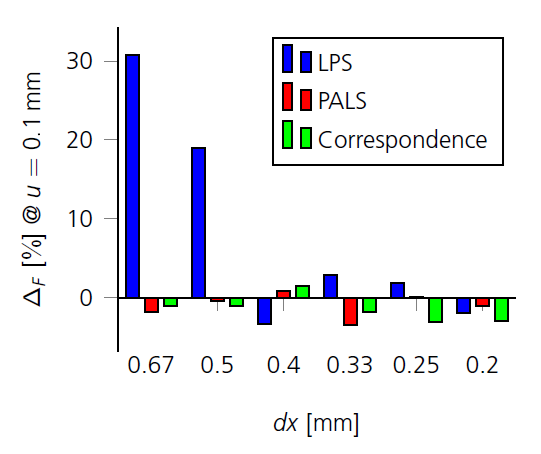

Convergence of the different methods

Figure taken from [35]

PeriLab:
  Discretization:
    Node Sets:
      Node Set 1: 1
      Node Set 2: 5
    Type: "Text File"
    Input Mesh File: "truss.txt"
  Models:
    Material Models:
      Test:
        Material Model: "PD Solid Elastic"
        Symmetry: "isotropic plane stress"
        Young's Modulus: 7000
        Poisson's Ratio: 0.3
  Blocks:
    block_1:
      Block ID: 1
      Material Model: "Test"
      Density: 2e-9
      Horizon: 2
  Boundary Conditions:
    BC_1:
      Variable: "Displacements"
      Node Set: "Node Set 1"
      Coordinate: "x"
      Value: "100*t"
      Type: Dirichlet
    BC_2:
      Variable: "Displacements"
      Coordinate: "x"
      Node Set: "Node Set 2"
      Value: "0.1*t"
      Type: Dirichlet
  Solver:
    Material Models: True
    Initial Time: 0.0
    Final Time: 1.0
    Number of Steps: 20
    Static:
      Show solver iteration: true
      Residual tolerance: 1e-7
      Solution tolerance: 1e-8
      Residual scaling: 7000
      m: 550
      Maximum number of iterations: 100
  Outputs:
    Output1:
      Output Filename: "truss"
      Output File Type: Exodus
      Number of Output Steps: 20
      Output Variables:
        Displacements: True
        Number of Neighbors: True
        Forces: True

Ordinary PD Solid Elastic

Difference to PD Solid.

PeriLab:
  Discretization:
    Node Sets:
      Node Set 1: 1
      Node Set 2: 5
    Type: "Text File"
    Input Mesh File: "truss.txt"
  Models:
    Material Models:
      Test:
        Material Model: "Correspondence Elastic"
        Symmetry: "isotropic plane stress"
        Young's Modulus: 7000
        Poisson's Ratio: 0.3
        Global Control: true
  Outputs:
    Output1:
      Output Filename: "truss"
      Output File Type: Exodus
      Number of Output Steps: 20
      Output Variables:
        Displacements: True
        Number of Neighbors: True
        Forces: True
        Cauchy Stress: True

Models for the seminar

Create you own model

• create a mesh (block.jl is an example)
• specify node lists for boundary conditions
• define your yaml file
• run your model
• analyse it in Paraview
