Seminar 2: Material point method and solver

• particle method
• points are grid fix (no pure mesh free method)

Advantage

• no topology
• disconnection of points is easy

Disadvantage

• convergence is low
• gradients purely described by points

Equations in the Quasi-Static Materiwal Point Method Algorithm

1. Mapping Material Point Quantities to Grid Nodes

• Nodal Mass

\[M_{\text{node}} = \sum_{mp} m_{mp} \, N_{mp-nd}\]

• Nodal Velocity

\[\mathbf{V}_{\text{node}} = \frac{1}{M_{\text{node}}} \sum_{mp} \mathbf{P}_{mp} \, N_{mp-nd}\]

• Internal Force Vector

\[\mathbf{F}_{\text{node}}^{\text{internal}} = \sum_{mp} \boldsymbol{\sigma}_{mp} \, \nabla N_{mp-nd}\]

• External Force Vector

\[\mathbf{F}_{\text{node}}^{\text{external}} = \sum_{mp} \mathbf{b} \, N_{mp-nd}\]

2. Solving Equations of Motion on the Grid

• Nodal Acceleration

\[\mathbf{A}_{\text{node}} = \frac{\mathbf{F}_{\text{node}}^{\text{external}} + \mathbf{F}_{\text{node}}^{\text{internal}}}{M_{\text{node}}}\]

• Updated Nodal Velocity

\[\tilde{\mathbf{V}}_{\text{node}} = \mathbf{V}_{\text{node}} + \mathbf{A}_{\text{node}} \, \mathrm{d}t\]

3. Mapping Back to Material Points

• Material Point Acceleration

\[\mathbf{a}_{mp} = \sum_{nd} \mathbf{A}_{\text{node}} \, N_{nd-mp}\]

• Strain Rate (Infinitesimal Strain Theory)

\[\dot{\boldsymbol{\varepsilon}}_{mp} = \sum_{nd} \frac{1}{2} \left[ \mathbf{V}_{\text{node}} \nabla N_{nd-mp} + (\mathbf{V}_{\text{node}} \nabla N_{nd-mp})^T \right]\]

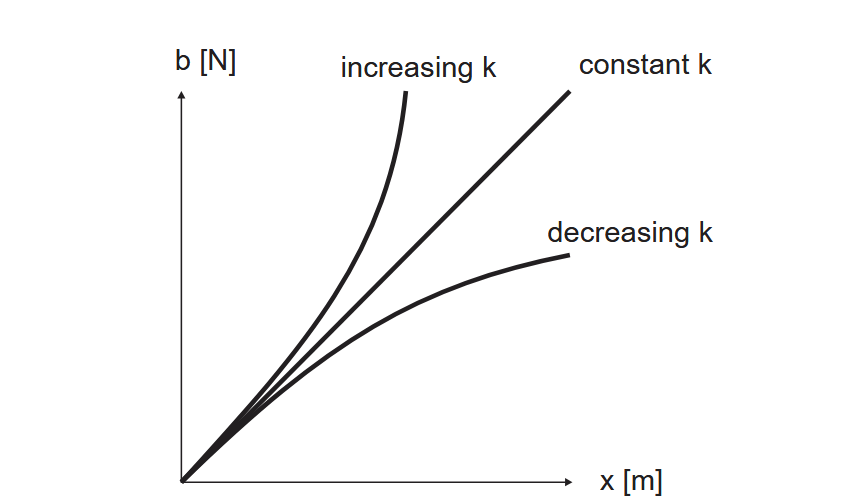

Figure taken from [2].

\[\rho \ddot{u}_i = \frac{1}{2}\sum_j (f_{ji}V_i-f_{ij}V_j)+b_i\]

\[F_i + b_i=\rho\ddot{u}_i\]

Static case

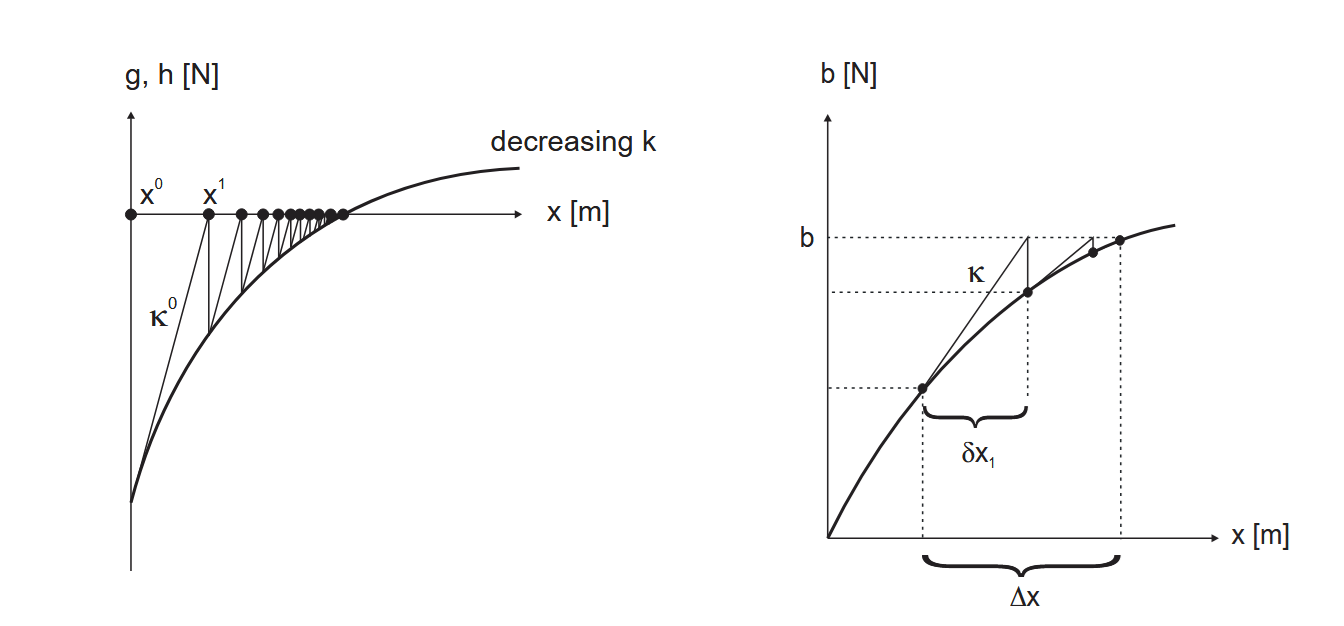

Figure taken from [2].

\[\mathbf{F}(\mathbf{u}_{i+1}) + \mathbf{b}_{i+1} \rightarrow 0\]

Verlet time integration

\[\mathbf{u}_{i+1} = \mathbf{u}_{i} + \Delta t\dot{\mathbf{u}}_{i} + \frac12 \Delta t^2\ddot{\mathbf{u}}_{i}\]

with

\[\ddot{\mathbf{u}}_{i} = \frac{\mathbf{F}_i}{\rho}\]

where $\rho$ is the mass density of the point and $\mathbf{F}_i=\mathbf{F}_{external}-\mathbf{F}_{internal}$ for the current time step.

For parabolic time integration as in temperature models the following schema is used

\[\boldsymbol{\tau}_{i+1} = \boldsymbol{\tau}_i - \Delta t \frac{\mathbf{H}}{\rho C_v}\]

where $\rho$ is the mass density, $C_v$ is the specific heat capacity and $\mathbf{H}$ is the heat flux of each point [10].

For the time intergration a stable increment has to be determined.

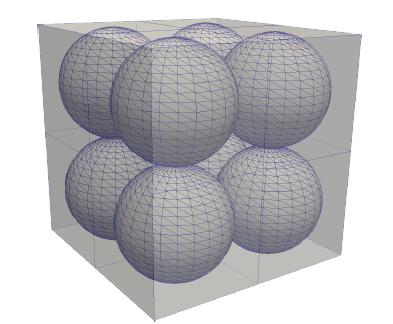

Volume correction

\[\lambda_{corr}=\frac{2V_0}{V(\mathbf{x})+V(\mathbf{x}')}\]

The reference volumen $V_0$ is depended on the dimension (3D or 2D)

\[V_{0-3D}=\frac{4\pi\delta^3}{3}\]

\[V_{0-2D}=\frac{\pi\delta^2h}{4}\]

this factor is than multiplied to the bond force $\mathbf{t}_{corr} =\lambda_{corr}\mathbf{t}$

You can apply the surface correction initialy for all outer surfaces and continuous, for cracks or additive manufacturing.

using Plots
using Polynomials

# Definition des Intervalls
x = range(0, π, length=200)
y = sin.(x)

# Plot vorbereiten
plot(x, y,
    label="sin(x)",
    lw=2,
    legend=:bottomleft,
    xlabel="x",
    ylabel="y",
    size=(1200, 800))

# Anzahl der Stützstellen
n_nodes = 8
x_nodes = range(0, π, length=n_nodes)
y_nodes = sin.(x_nodes)

# Approximation mit Polynomen 2. bis 7. Ordnung
for deg in 1:3
    # Polynomanpassung
    p = fit(x_nodes, y_nodes, deg)
    y_approx = p.(x)
    plot!(x, y_approx, label="Grad $deg")
end

# Punkte anzeigen
scatter!(x_nodes, y_nodes, label="Exact solution", color=:black)

Set up your own model

header: x y block_id volume
0 0 1 1
1 0 1 1
2 0 1 1
3 0 1 1
4 0 1 1

function generate_grid_fixed_spacing(filename, x_from, x_to, y_from, y_to, dx; block_id=1)

    num_points_x = Int(floor((x_to - x_from) / dx)) + 1
    num_points_y = Int(floor((y_to - y_from) / dx)) + 1
    volume = dx * dx

    open(filename, "w") do io
        println(io, "header: x y block_id volume")
        for j in 0:num_points_y-1
            y = y_from + j * dx
            for i in 0:num_points_x-1
                x = x_from + i * dx
                println(io, "$(x) $(y) $(block_id) $(volume)")
            end
        end
    end
end

PeriLab:
  Discretization:
    Node Sets:
      Node Set 1: 1
      Node Set 2: 5
    Type: "Text File"
    Input Mesh File: "truss.txt"
  Models:
    Material Models:
      Test:
        Material Model: "Bond-based Elastic"
        Symmetry: "isotropic plane stress"
        Young's Modulus: 7000
        Poisson's Ratio: 0.3
  Blocks:
    block_1:
      Block ID: 1
      Material Model: "Test"
      Density: 2e-9
      Horizon: 2
  Boundary Conditions:
    BC_1:
      Variable: "Displacements"
      Node Set: "Node Set 1"
      Coordinate: "x"
      Value: "100*t"
      Type: Dirichlet
    BC_2:
      Variable: "Displacements"
      Coordinate: "x"
      Node Set: "Node Set 2"
      Value: "0.1*t"
      Type: Dirichlet
  Solver:
    Material Models: True
    Initial Time: 0.0
    Final Time: 1.0
    Number of Steps: 20
    Static:
      Show solver iteration: true
      Residual tolerance: 1e-7
      Solution tolerance: 1e-8
      Residual scaling: 7000
      m: 550
      Maximum number of iterations: 100
  Outputs:
    Output1:
      Output Filename: "truss"
      Output File Type: Exodus
      Number of Output Steps: 20
      Output Variables:
        Displacements: True
        Number of Neighbors: True
        Forces: True
