Getting Started

Installation

The PeriLab package is available through the Julia package system and can be installed as an App using the following commands:

using Pkg
Pkg.Apps.add("PeriLab")
Bundled Installation

Alternatively, you can also download the binaries for Windows or Linux directly from the release page, Julia is already included there.

Using PeriLab

The simplest way to run the PeriLab simulation core is to use the provided PeriLab Application and go.

PeriLab -e
PeriLab examples/DCB/DCBmodel.yaml

The output should look like this:

PeriLab -e copies the examples into the current directory. The structure of the yaml input deck is described in Input File.

Using PeriLab with multiple processors (MPI)

In order to run PeriLab for large scale problems MPI needs to be installed:

$ julia
julia> using MPI
julia> MPI.install_mpiexecjl()

Run PeriLab with two processors:

$ mpiexecjl -n 2 -bind-to core julia -e 'using PeriLab' examples/DCB/DCBmodel.yaml

-bind-to core pins every rank to one core, so the operating system does not move ranks between cores or sockets. This keeps caches and memory local and can shorten runs with many ranks considerably. For ranks with several threads, reserve a core per thread, e.g. 4 ranks with 4 threads each:

$ mpiexecjl -n 4 -bind-to core:4 julia -t 4 -e 'using PeriLab' examples/DCB/DCBmodel.yaml

With OpenMPI the options are --bind-to core and --map-by slot:PE=4; with Slurm use srun --cpu-bind=cores.

Postprocessing

For post-processing of the Exodus result files ParaView is used. You can open the .e file directly. All output data can be find there. At step 0 all zero. They are filled in the first step. The number of steps are defined in the yaml.

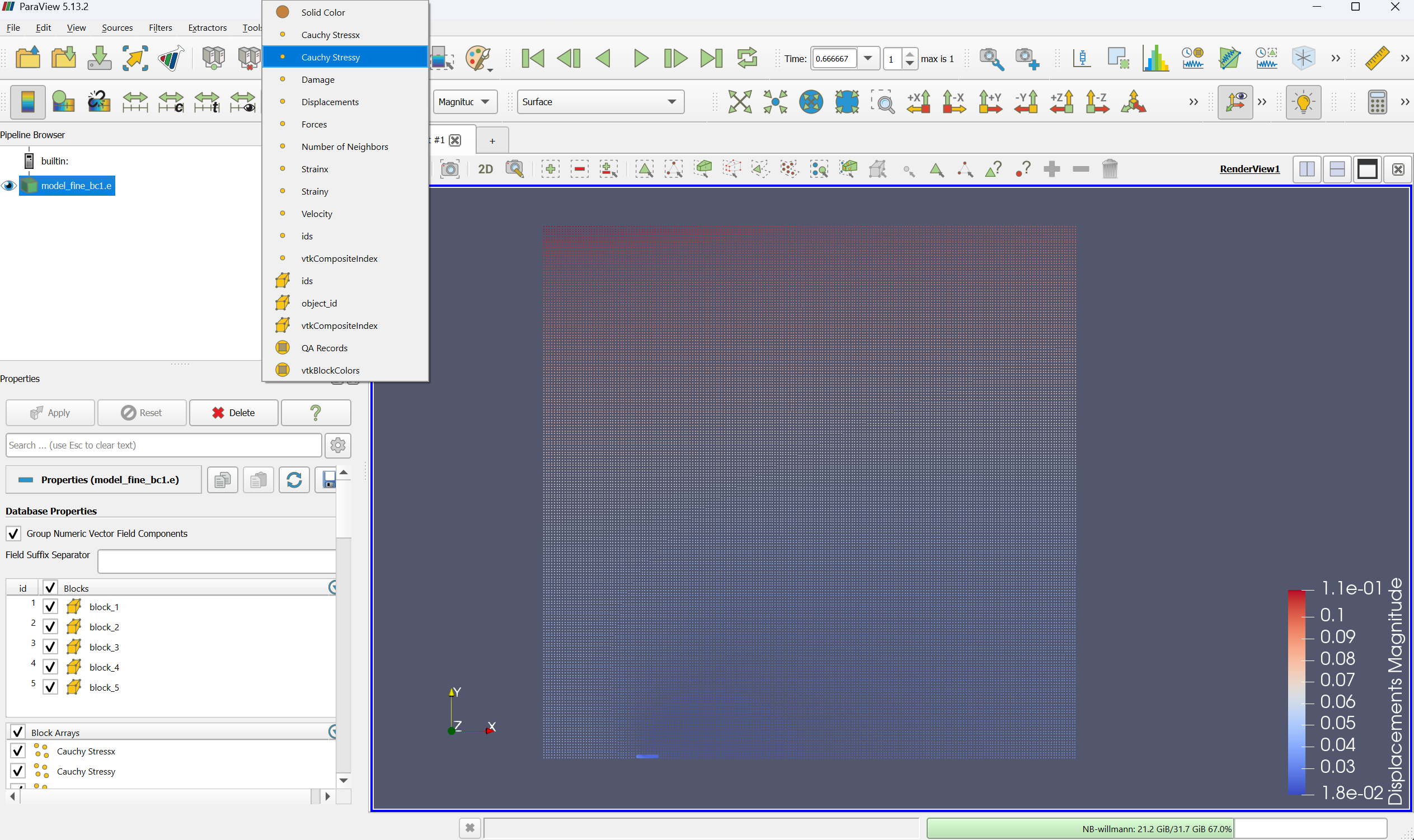

The figure shows an example of a plate and the list of possible options.

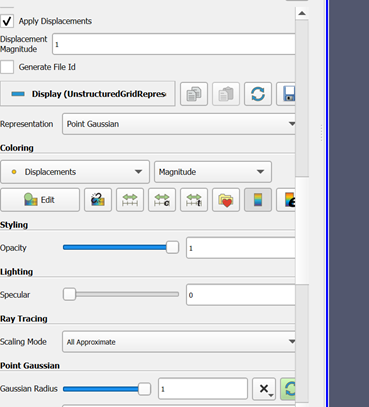

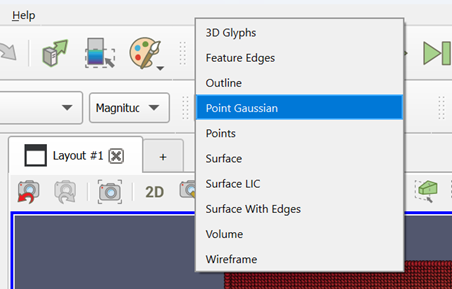

Because the points are very small, you have the option to use point gaussian as an option. The points get a volume. The standard is a sphere. The size can be scaled.

Index

Functions

PeriLab.main — Function
main()

Entry point for the PeriLab application.

This function serves as the entry point for the PeriLab application. It calls the core run function with the provided arguments.

source
